M-1000 Automatic Tape Dispenser

bojin — Wed, 15 Jun 2016 07:49:43 +0000

M-1000 Automatic Tape Dispenser

Operation Video

Benifits

* Ideal for medium production facilities in many industries;
* Auto Mode & Manual Mode are both available;
* Automatically advance and cut tape;
* Digital length adjustment;
* Manual override of preset lengths;
* Adjustable pressure feed to help prevent curling of tape;
* Accuracy of cutting length is +/- 1mm, depending on types of material;
* Other versions of M-1000 tape dispensing machine are also available for Narrow Tapes; Glass Cloth Tapes; with Creaser; with Ionizer, etc.

Features

* Tape Width: 7 ~ 50mm
* Cut Length: 5 ~ 999mm, Digital Length Adjustment.
* Length setting: Digital
* Accuracy of cut: +/-1mm
* Display: 3 digit LED
* Counter Up or Down: Optional
* Tape Material: 100+ tape materials can be cut, including PVC tape, paper tape, cloth tape, glass tape, pp tape, kraft adhesive tape, ect.
* Application: Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Automotives, Electric & Electronics, etc.

Instruction

* Preset a required length first, stick the tape tip to the outlet, and the tape will be cut automatically.
* Auto mode and Manual mode are both available.
* When a long tape is needed, keep pressing “FORWARD” key to the desired length, then press “CUT” key.
* The cutter unit cassette can be removed and replaced easily (tape jamming can be also easily fixed).
* The cutting length is shown on LED display, you can set the cutting length easily by “CM” or “MM” key.

ZCUT-9 Automatic Tape Dispenser

bojin — Sat, 11 Jun 2016 06:37:45 +0000

YAESU Automatic Tape Dispenser ZCUT-9

Operation Video

Specifications

* Tape Width: 6-60mm
* Tape Length : 5-999mm
* Tape Types: 100+ types of tapes, including Acetate/Glass Cloth, Double-Sided, Normex, Filament, Kapton, Pre-stick, Cellophane, Craft, Masking, Plastic, etc.
* Usable Non Adhesive Material: Protection Film, Insulation Film, Aluminum/Copper Foil, Paper Tape, Tube, Plastic Band, Magic Tape, ribbon, etc.
* Feeding Speed: 200 mm /sec.
* Max. Outside Dia. of Roll: 300mm
* Accessories: Power Cord, 2A Fuse(Built-in Inlet), Separator (for two rolls), Guide Plate, Tweezers, Blade Oil.
* Power Requirement: 220-240V, 120V, 100V
* Body Material: Anti-Static ABS
* Dimensions & Weight: 116(W) x 140(H) x 213(D) mm 1.6Kg
* Application: Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Automotives, Electric & Electronics, etc.

Unique Features

* Max. 6 different lengths can be preset before use.
* Any size of tapes fit without bobbins.
* Cut length from 5mm to 999mm.
* Safety function and design.
* Memory function enables this auto tape dispenser memorizing six different length preset before use.
* Able to cut non-adhesive and double side tapes, Protection Film, Copper Foil, Aluminum Foil, Insulation * * material and more.
* Enable to hold the film or tape by using Flexible Tape Support.
* Preset and Loop counter functions.
* Compact body answers to Cell-System.
* Enable to use 2 rolls at the same time.
* Dual Photo Sensor.
* Build-in Tweezers, Oil, and Separator.
* Cutting Accuracy: +/-1mm
* CE certification.

Notice

* Some of usable tapes may not cut depends on material/tape manufacturer.
* The length of tape might be have an error depends on types of tape.
* Specification are subject to change without prior notice.

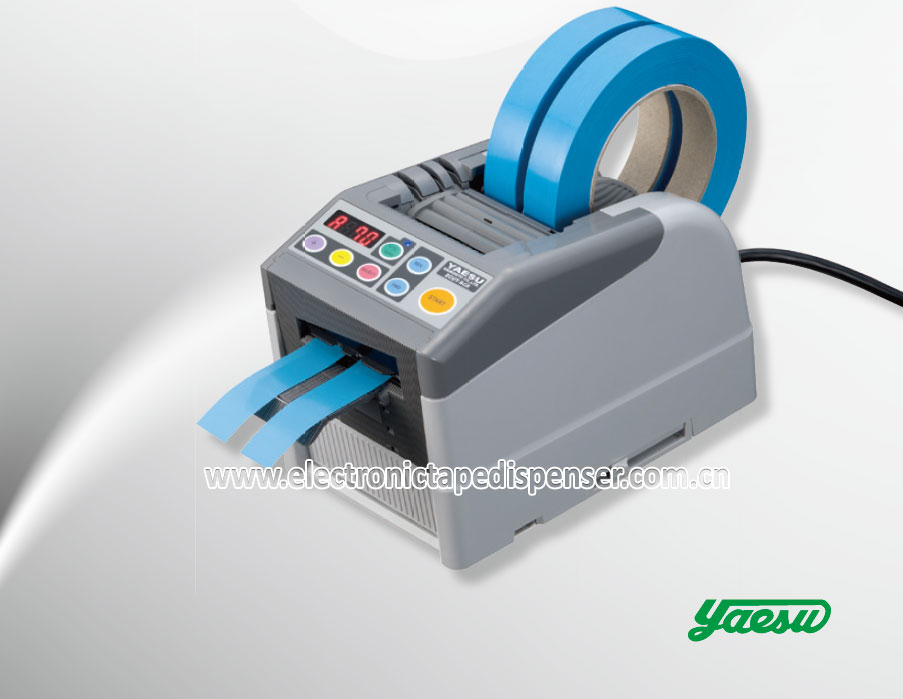

ZCUT-9GR Automatic Tape Dispenser

bojin — Fri, 10 Jun 2016 06:41:27 +0000

YAESU Automatic Tape Dispenser ZCUT-9GR

Featuru

* Safety function and design for finger
* Memory function enable set six different length before use.(for example: 50-60- 70-80-90-100mm, repeat cutting)
* Can setting the number of tape cutting decreasing.
* Any size of tapes fit without bobbins and Max Outside Diameter is 300mm
* Enable to cut Protection Film, Copper Foil, Aluminum Foil, Insulation material and more.
* Enable to hold the film or tape by using Flexible Tape Support.
* Preset and Loop counter functions.
* Compact body answers to Cell-System.
* Enable to use 2 rolls at the same time.
* Dual Photo Sensor.
* Build-in Tweezers, Oil, and Separator.
* Engineer can successfully remove the roller unit, without the tools.

Specifications:

* Cut Length:5 – 999 mm
* Tape Width:6 – 60 mm
* Usable Tape:Filament, Strong, Acetate Cloth, Glass Cloth, Double-Sided, Normex, Pre-stick, Cellophane, Craft, Masking, Plastic, and more.
* Tape Thickness:0.05-0.3mm
* Usable Non Adhesive Material:Protection Film, Paper Tape, Insulation Film, Aluminum Foil, Copper Foil etc.
* Feeding Speed:200 mm/ sec 50pcs/min (when cut Craft Tape)
* Max Outside Diameter:300 mm
* Accessories:Power Cord, 2A Fuse (Built-In Inlet), Separator, Guide Plate, Tweezers, Blade Oil.
* Body Material:Anti-Static ABS
* Power Requirements:AC100V 50/60Hz 25W
* Dimensions:116 mm(W)x140 mm(L)x213 mm(H)
* Weight:1.6kg

Notice

ZCUT-10 Automatic Tape Dispenser

bojin — Thu, 09 Jun 2016 06:52:53 +0000

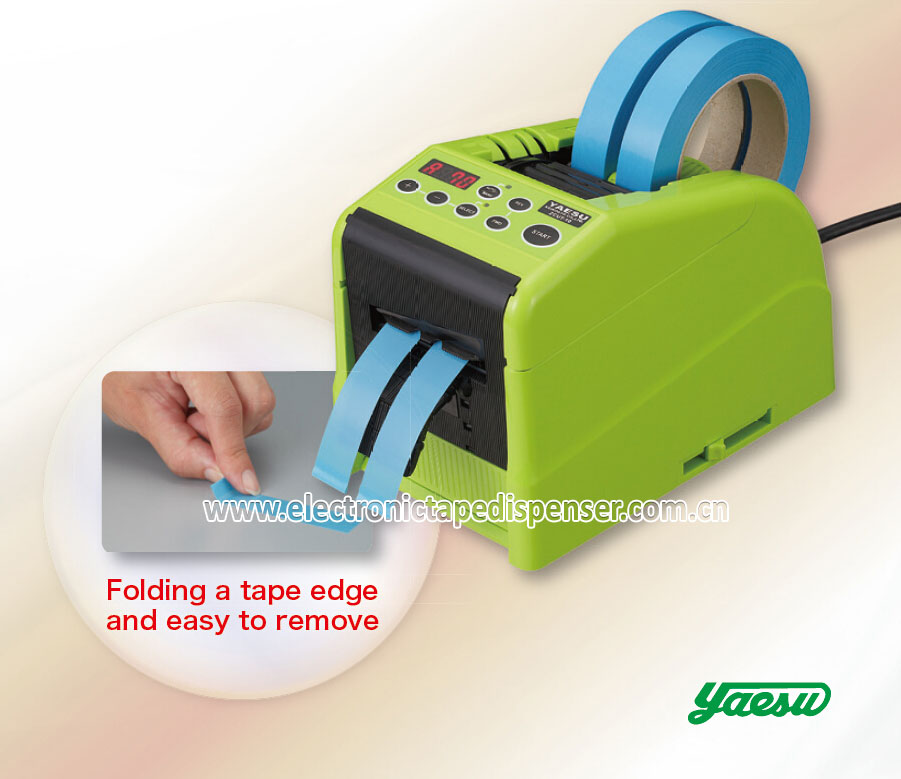

YAESU Automatic Tape Dispenser ZCUT-10

Operation Video：

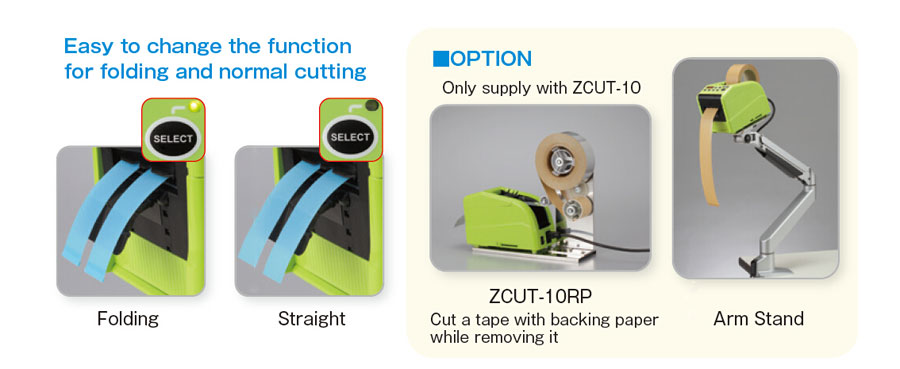

Feature：
* Memory Function (Six different lengths can be memorized)

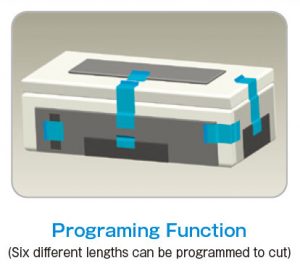

* Programing Function (Six different lengths can be programmed to cut)
* Possible to cut two roll tapes at the same time due to Dual Photo Sensor
* Tape Support to position a cut piece of tape for easy to take
* Set a tape without using bobbin
* Possible to cut non-adhesive tapes
* Build-in Separator for cutting two rolls tape, Guide Plate, and Blade Oil

Specifications：

* Cut Length:5-999mm
* Folding Length:7mm
* Tape Width:6-60mm
* Tape Thickness:0.05 – 0.3 mm
* Feeding Speed:220 mm sec ･Approximately 50pcs/min.(in the case of cutting 100mm with craft tape)
* Max. Outside Dia. of Roll:300mm
* Weight:1.6kg
* Accessories:Separator. Blade Oil. Guide Plate. Power Cord.
* Rated Voltage:AC100V 50/60Hz 25W Fuse2A(AC inlet Build-in)
* Dimensions:116 mm(W)x148 mm(H)x223 mm(D)
* Usable Tapes:Craft, PP, Vinyl, Filament, Glass Cloth, Double-Sided, Strapping, Protective Film, Aluminum Foil, and Others

*Some of usable tapes may not cut depends on material/tape manufacturer.
*The length of tape might be have an error depends on types of tape.
*Specification are subject to change without prior notice.

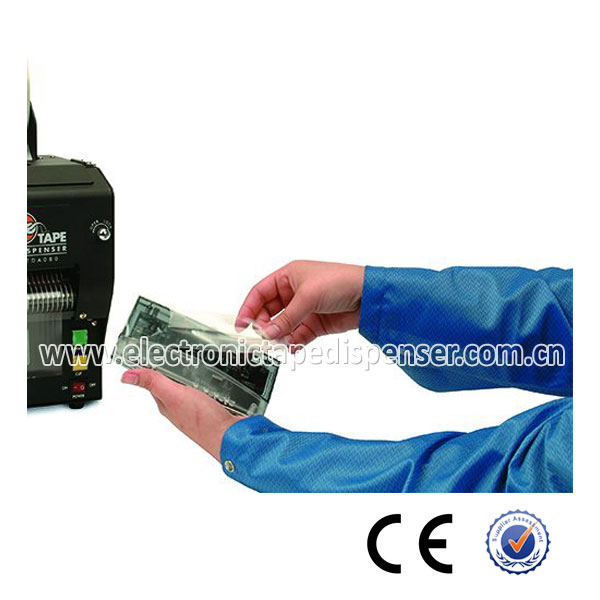

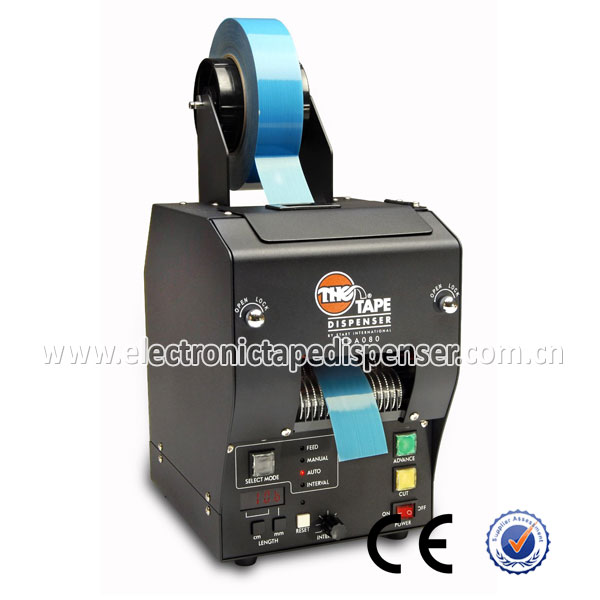

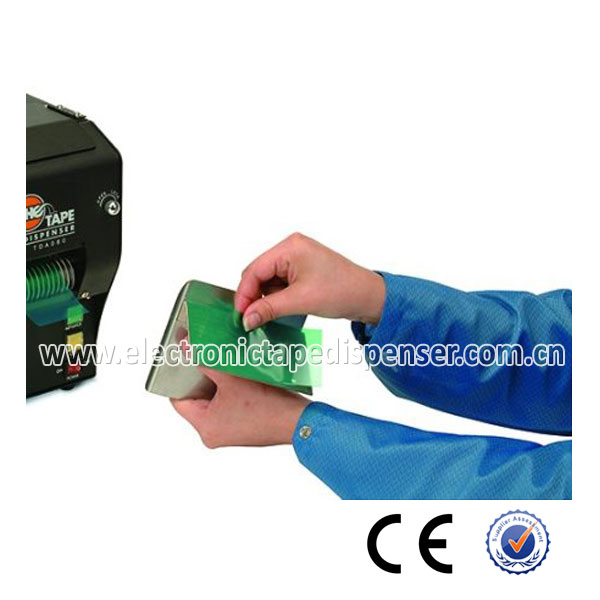

TDA-080 Heavy Duty Tape Dispenser

bojin — Wed, 08 Jun 2016 06:28:06 +0000

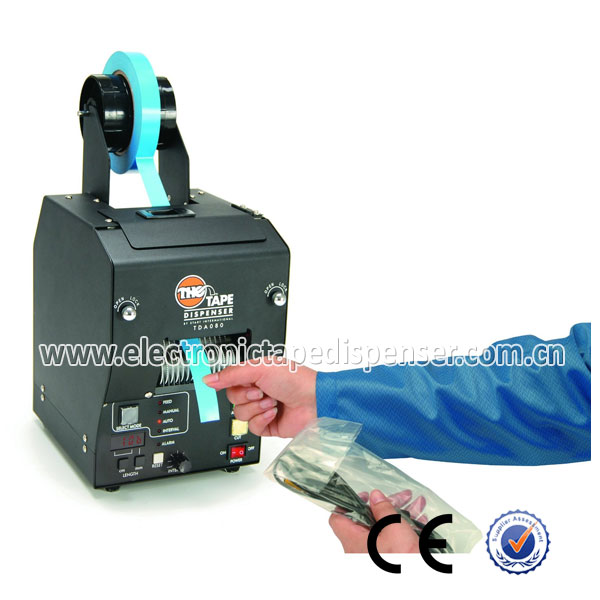

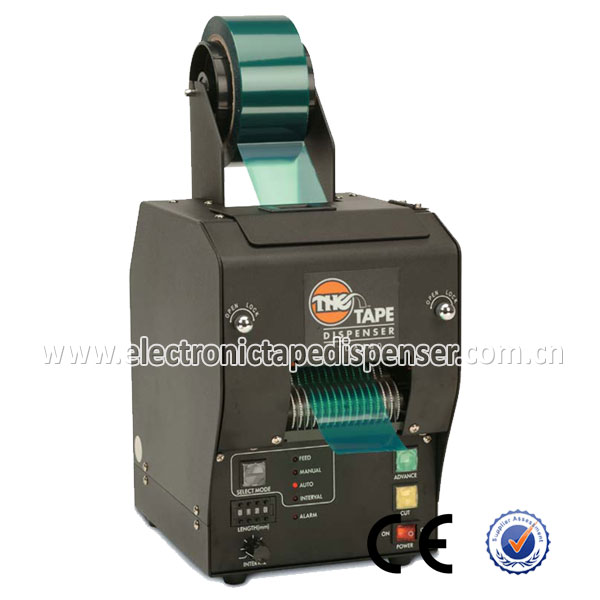

TDA-080 Heavy Duty Tape Dispenser

Operation Video

Specifications

* Width: 13-80mm
* Tape Size Set Limit: 40 – 9999mm
* Free Max. OD of Roll: 230mm
* Core Diameter: 3″ (76.2mm)
* Accuracy: ± 1mm
* Power supply: AC110V 60Hz / AC220V 50Hz
* Dimensions & Weight: 229W x 168D x 360H 11kg
* Switchable voltage (100v/115v or 230v)
* Features Automatically dispenses and cuts virtually any tape – including duct tape
* Compact design and heavy duty metal construction, Safety interlock
* 9″ (251mm) maximum outside diameter roll

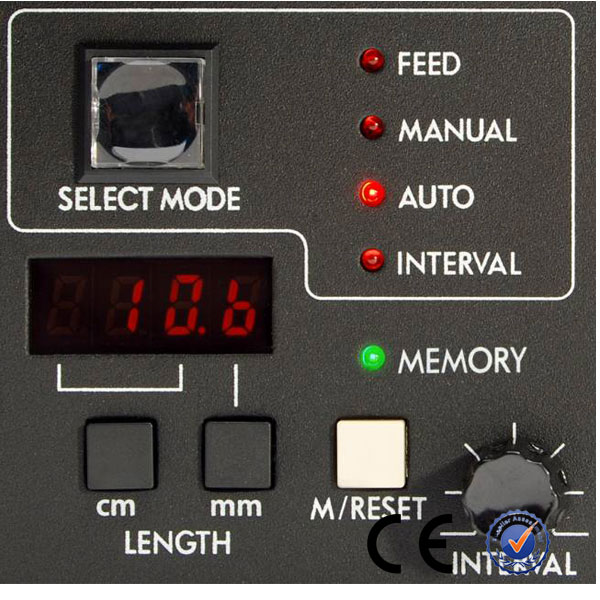

* Digital push switch display for easy length adjustments

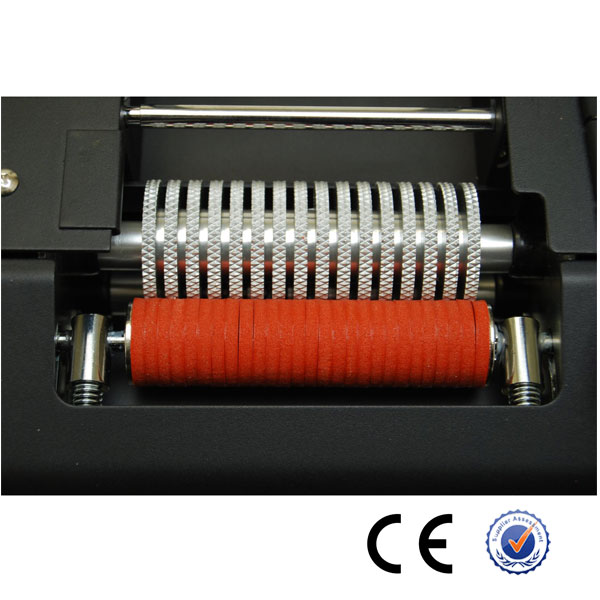

* Adjustable feed intervals
* Can dispense some non-adhesive materials

ZCUT-2 Vinyl Tape Dispenser

bojin — Mon, 06 Jun 2016 07:07:04 +0000

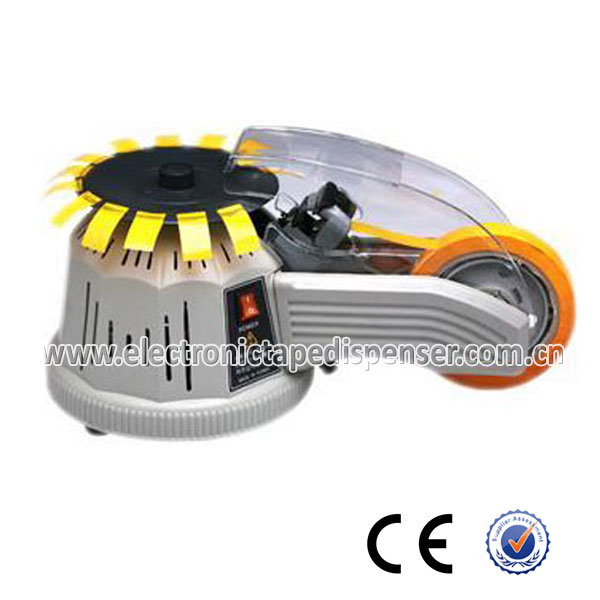

ZCUT-2 Vinyl Tape Dispenser

Operation Video

Specifications

* Available Tape Width: 3 ~ 25mm
* Available Cut Length: 13 ~ 60mm
* Adjusting Method: Screw
* Bobbin: Needed
* Body Material: Plastic
* Measurement & Gross Weight: 300×170×165mm 2.8kg
* Tape Types: PVC tape, vinyl tape, cellophane tape, pp tape, polyethylene tape, masking tape, capton tape, teflon tape, mylar tape nomex tape, paper tape, acetate cloth tape, cotton cloth tape, glass cloth tape, aluminum foil tape, double-sided tape, soft forming tape, and more.

Features

* Allows up to 20 pieces of tape to be cut;
* Uniqure feeding system: place tape on carousel for easy removal;
* Ideal for multiple operators and high volume requirements;
* Safety switch on cover.
* This tape dispenser can cut Kapton tapes without curling. It also can cut very slim tape with a min. width 3mm.

Instruction

* Once you hit a button, it sticks the tapes halfway around as it cuts.
* Simply change both upper and lower blades. They don’t need to be adjusted.
* Enable to cut many kinds of tape with one machine.

RT-3000 PP Tape Dispenser

bojin — Sun, 05 Jun 2016 03:34:19 +0000

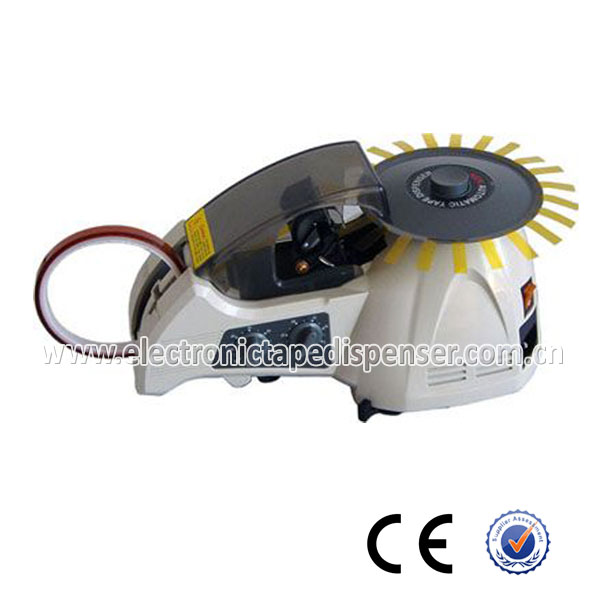

RT-3000 PP Tape Dispenser

Specifications

* Available Width: 3 ~ 25mm
* Available Length: 9 ~ 61mm
* Power Supply: AC110V 60Hz / AC220V 50Hz
* Measurement & Weight: 150*120*250mm 2.2Kg

Features

* Once you hit a button, it sticks the tapes halfway around as it cuts.
* Bobbin free, can put any size of roll, antistatic ABS body.
* Very easy to operate, Change the length of tape and spacing by side knob.
* Simply change both upper and lower blades. They don’t need to be adjusted.
* Enable to cut many kinds of tape with one machine.
* Unique feed system places tape on carousel for easy removal.
* Available tape type: PVC tape, cloth tape, glass tape, pp tape, double-side tape, capton etc..
* Can cut Kapton tapes without curling. Can cut very slim tape, min. 3mm width.

About Us

bojin — Wed, 25 May 2016 01:58:22 +0000

About Us

Who We Are?

Kunshan Bojin Trading Co., Ltd., established in 1998, is a leading manufacturer & exporter of various package machines, wire harness processing machines and other small automation machines.

BOJIN provides quality products at best price. Its main products include automatic tape dispenser , label dispenser, label rewinder, labeling machine, wire stripping machine, tape cutting machine, wire winding machine, terminal crimping machine, twist tie machine, harness taping machine, seal machine, coding machine, label printing machine, tube cutting machine, automatic bobbin machine, automatic screw feeder dispenser, spring separator, soldering stations, cleanroom products, etc.

Why Choose Us?

BOJIN is highly recommended and trusted by customers, BECAUSE:

1-Stop Sourcing Solution: We Help Choose the Best for Your Applications
15-Year Experience In Small Automation Equipment Export
11-Year Gold Supplier of Alibaba
TüV-Rheinland-Certified Supplier
Trusted Supplier for 50+ International Brand Companies
3 Independent Brands + Agent of 3 International Brands
1000+ Cost-effective Products with Best Warranty
CE Certification Declares Sound Quality
Highly Recommended Supplier

Team

Home

bojin — Wed, 25 May 2016 01:55:42 +0000

ZCUT-10 Automatic Tape Dispenser
Cut Length：5 – 999 mm
Tape Width：6 – 60 mm
Folding Length：7mm
Tape Thickness：0.05 – 0.3 mm
ZCUT-9GR Automatic Tape Dispenser
Cut Length：5 – 999 mm
Tape Width：6 – 60 mm
Tape Thickness：0.05 – 0.3 mm
Max Outside Diameter: 300 mm
ZCUT-9 Automatic Tape Dispenser
Tape Length：5 – 999 mm
Tape Width：6 – 60 mm
Max. Outside Dia. of Roll: 300 mm
Feeding Speed: 200 mm/sec

ZCUT-870 Electronic Tape Dispenser
Cut Length：15 – 70 mm
Tape Width：3 – 25 mm
Max Outside Diameter ：150 mm
Body Material：ABS
M-1000 Automatic Tape Dispenser
Tape Width: 7 ~ 50mm
Cut Length: 5 ~ 999mm
Length setting: Digital
Accuracy of cut: +/-1mm
BJ-2000S Packaging Tape Dispenser
Tape Width: 5mm ~ 50mm
Cut length: 5mm ~999mm
Accuracy of cut: +/- 1mm
Display: 3 digit LED

ZCUT-2 Vinyl Tape Dispenser
Available Tape Width: 3 ~ 25mm
Available Cut Length: 13 ~ 60mm
Adjusting Method: Screw
Bobbin: Needed
ED-100 Automated Tape Dispenser
Acceptable Tape Width: 7mm ~ 50mm
Cut Length: 15mm ~ 999mm
Display: 3 digit LED
M-1000S Sealing Tape Dispenser
Available Width: 5 ~ 50mm
Available Length: 5 ~ 999mm
Display: 3 digit LED
